Surly Grappler Frameset - 27.5, Steel, Subterranean Homesick Blue, Large

MPN: 04-002083 · UPC: 708752431515

$749.00

In Stock — Ready to Ship

💳 Pay as low as $749/mo with Affirm. Prequalify now

Select Option: — Choose —

🏪 Free pickup: 26 Essex St (Rear), Andover MA · 978-270-4895

🔒 Secure Checkout

💳 Visa · MC · Amex · Apple Pay

📦 Free Ship $99+

🚚 Local Delivery $20

The Grappler is Surly’s dedicated drop-bar trail bike. With mountain geo designed around a comfortable, confident drop-bar hand position, it’s lively and responsive on single track, double track, and other degraded surfaces. Ready to haul essential gear for all-day dirt rides and quick bikepacking excursions, thru-axles front and rear provide ideal stiffness and handling. Built around 27.5” wheels and compatible with internally geared hub and single-speed setups, Surly’s tried-and-true Gnot-Boost spacing allows riders to run 142mm or 148mm rear hubs.

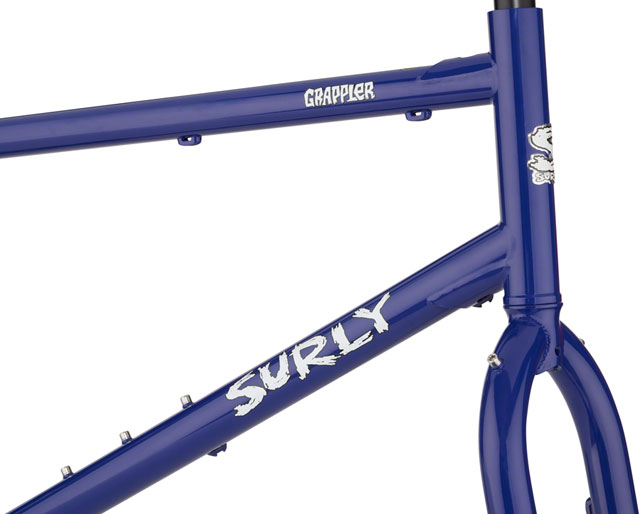

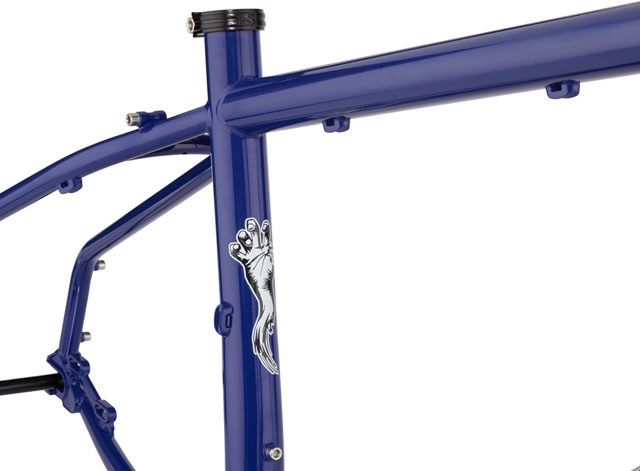

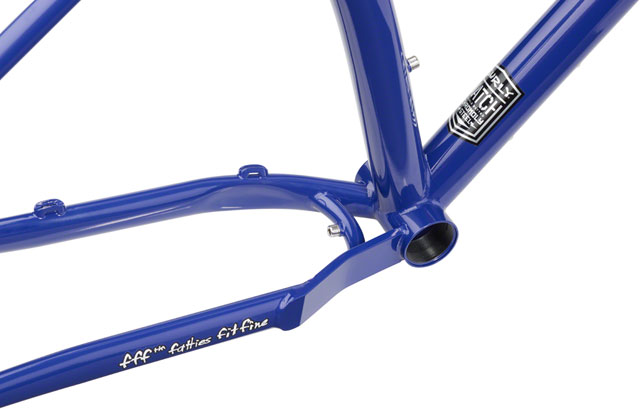

✓ 100% Surly Chromoly steel frame and fork, featuring Surly’s proprietary ’Natch tubing, double-butted main triangle, 1-1/8” headtube, non-suspension corrected

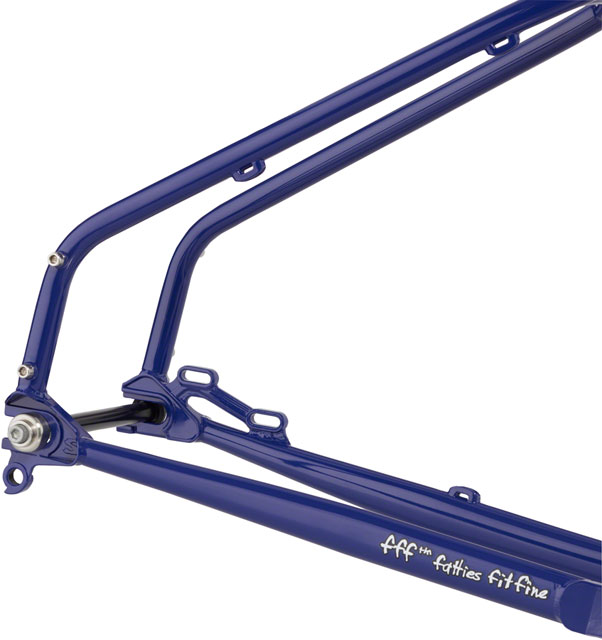

✓ Horizontal-slotted dropout, Surly Gnot-Boost spacing
✓ Seatstay-mounted bottle bosses, plus three-pack mounts at the top and bottom of the down tube and stealth dropper post routing
✓ E.D. coated frame for increased life expectancy
✓ 27.5 x 2.8” tire clearance (with or without fenders)

Rear Axle	12mm Thru x 145mm
Brake Type	Disc
TT (Effective)	640
Fork Type	Rigid
Frame Material	Steel
Frame Type	Rigid
Front Axle	15mm Thru x 110mm
Color	Subterranean Homesick Blue
Mfg Size	Large
Platform	Grappler
Wheel Size	27.5"
Defined Color	Blue

Bike Size Guide

Size	Rider Height	Inseam
XS / 47-49cm	5'0" – 5'3"	27" – 29"
S / 51-52cm	5'3" – 5'6"	29" – 31"
M / 54-55cm	5'6" – 5'9"	31" – 33"
L / 56-58cm	5'9" – 6'0"	33" – 35"
XL / 59-61cm	6'0" – 6'3"	35" – 37"

💡 This is a general guide. SOTO Cycles offers FREE basic bike fitting with every new bike purchased and picked up locally — we'll make sure your bike fits perfectly.
