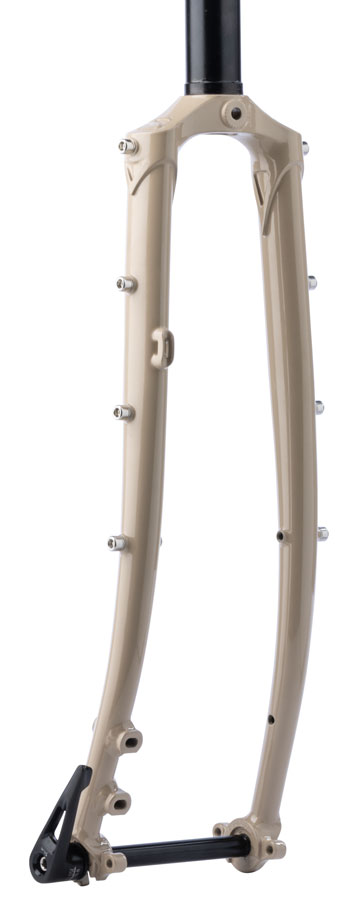

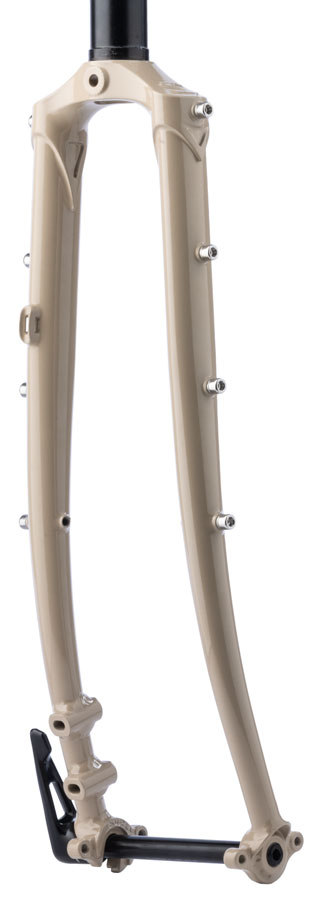

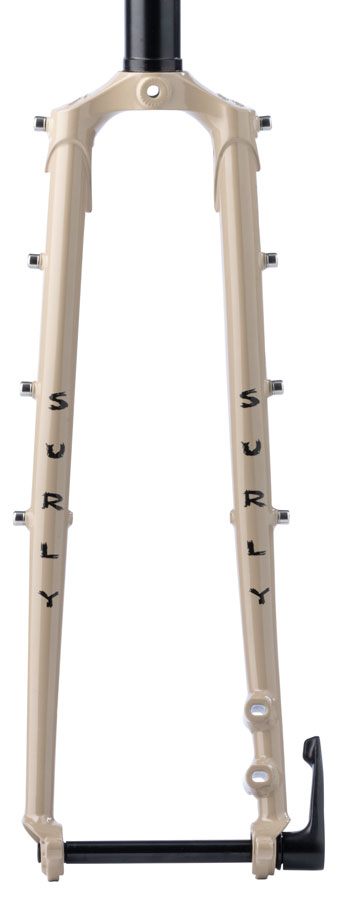

Surly Disc Trucker Fork - 700c, 1-1/8" Straight, 100x12 mm Thru-Axle, Steel, Disc, Grandpa's Khakis
MPN: 04-002095 · UPC: 708752449466
WARNING Handling this product will expose you to chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. For further information go to www.P65Warnings.ca.gov
Equipped to make touring the wide world’s paved roads a little more comfortable, the Disc Trucker Thru-Axle Fork has three-pack mounts on each blade to give you space for racks, fenders, and additional cargo solutions. Available in 26˝ and 700c wheel sizes, it offers dynamo routing, a 1-1/8˝ threadless steerer tube, and compatibility with 12mm captured thru-axles and flat-mount disc brakes.
- ✓ 100% Chromoly steel construction, curved blades, powder coated
- ✓ Versatile three-pack mounts on the fork blades, plus routing for Dynamo hubs
- ✓ Completely redesigned fork ends to accommodate 12mm captured thru-axles and flat-mount disc brakes
- ✓ Clearance for a 26 x 2.1" tire with or without fenders, or 700c x 47mm with or without fenders
- ✓ Axle-to-crown height: 376mm for 26", 390mm for 700c
- ✓ Note: The Disc Trucker Thru-Axle Fork is compatible with the second-generation Disc Trucker model, first released in 2020 (frames featuring rear thru-axle dropouts).
| Steerer Type | Straight |
| Max Rotor Size (Fork) | 160 |
| Brake Mount (Fork) | Flat Mount 140 |
| Brake Type | Disc |
| Offset | 45 |
| Material | Steel |
| Maximum Tire Clearance (Fork) | 700x50 |
| Axle to Crown Length | 390 |
| Front Axle | 12mm Thru x 100mm |
| Front Hub Spacing (mm) | 100 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Color | Grandpa's Khakis |
| Crown Race | 30 |
| Wheel Size | 700c |
| Defined Color | Tan |
| Steerer Tube Length (mm) | 350 |
