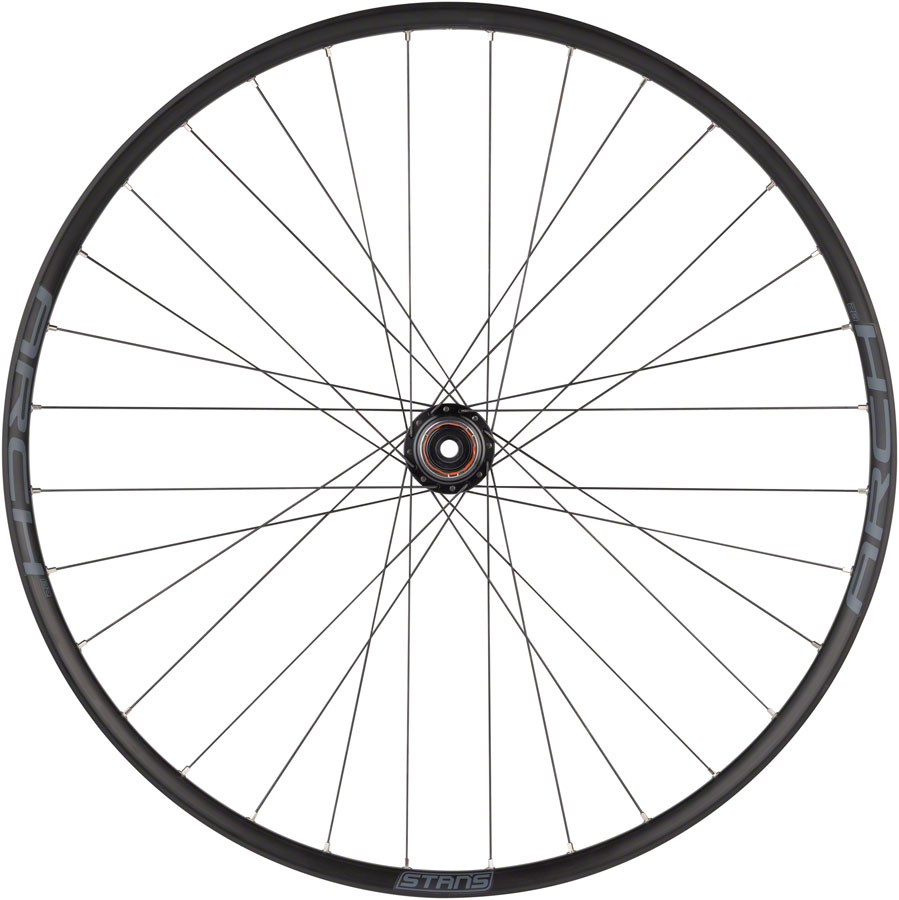

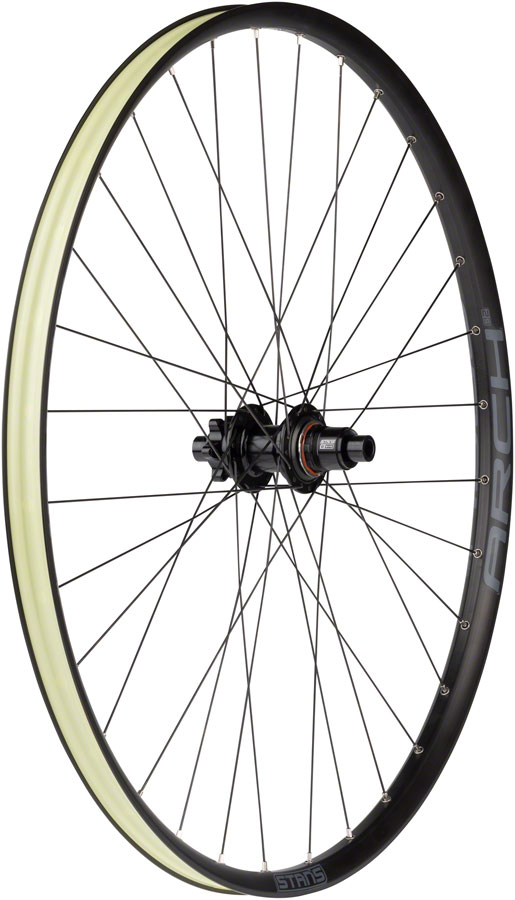

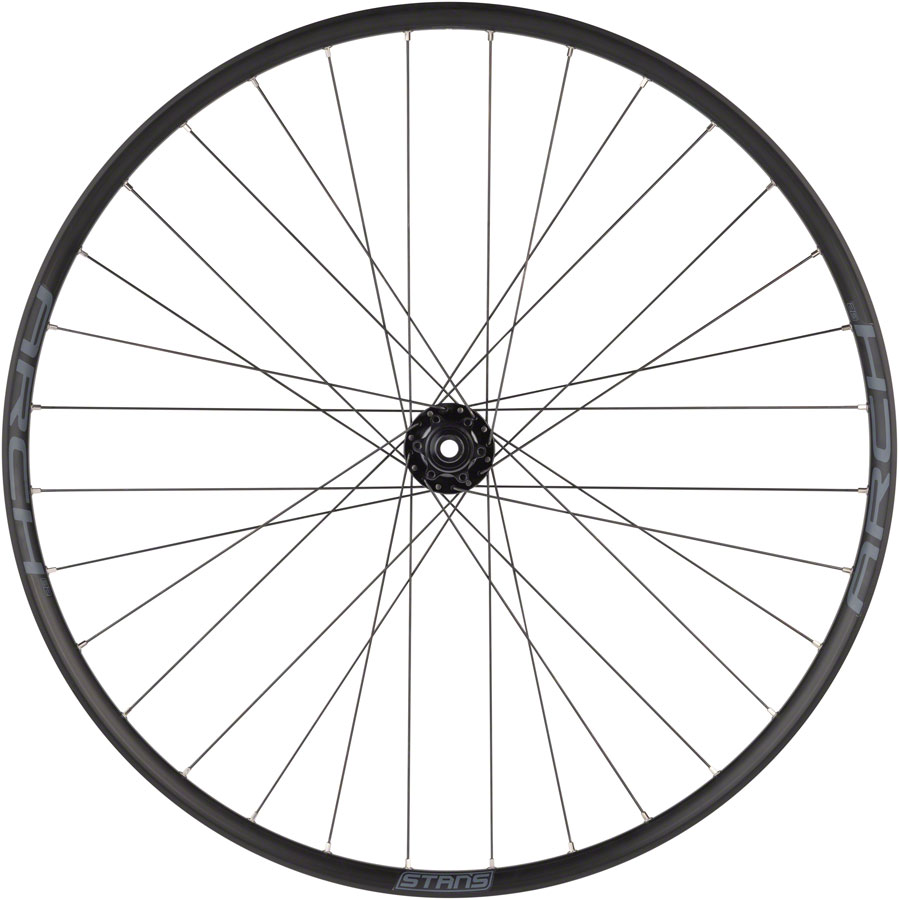

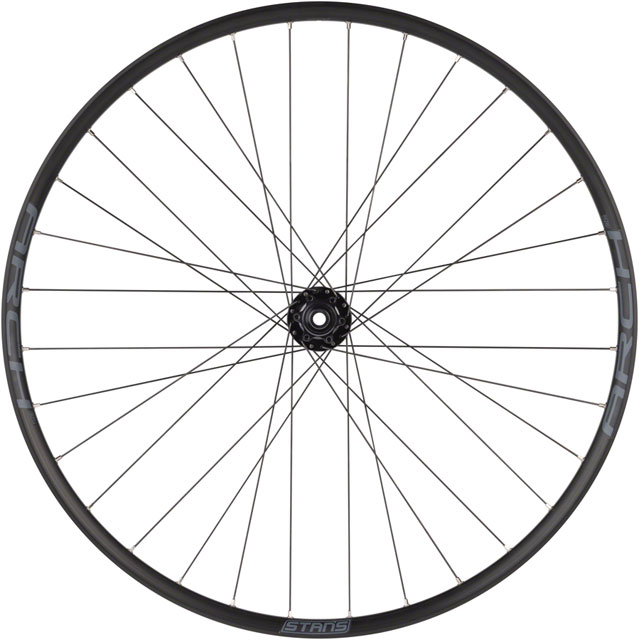

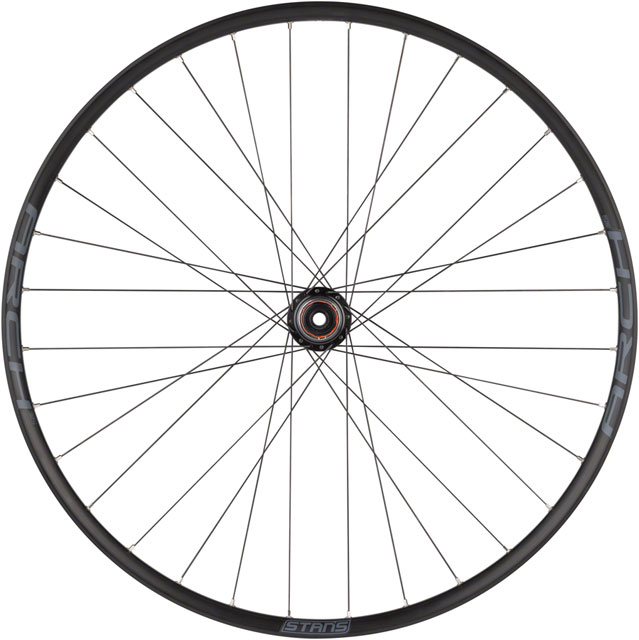

Stan's Arch S2 Rear Wheel - 29", 12 x 142mm, 6-Bolt, XDR, 32H

MPN: DWA290003 · UPC: 847746060499

$325.00 $400.00

In Stock — Ready to Ship

💳 Pay as low as $325/mo with Affirm. Prequalify now

Select Option: — Choose —

🏪 Free pickup: 26 Essex St (Rear), Andover MA · 978-270-4895

🔒 Secure Checkout

💳 Visa · MC · Amex · Apple Pay

📦 Free Ship $99+

🚚 Local Delivery $20

Arch S2 wheelsets have the versatility to handle a wide range of riding conditions and are the ideal upgrade for Trail, AM, Enduro, and eBikes. When your average ride includes both tough climbs and rough descents and you want the best tubeless system in the business, the Arch S2 is for you.

✓ Versatile 28mm internal rim width optimized for 2.2-2.5” tires
✓ 6061 aluminum with sleeved joint and stainless steel rim eyelets
✓ Patented BST low-profile rim shape for easy tubeless inflation and the most reliable seal
✓ Matched wheelsets use traditional J-bend lacing and share a single spoke length for easy serviceability
✓ E-sync hubs offer fast 8.18 deg engagement with reinforced pawls
✓ Enduro bearings with double-row freehub bearing and cromoly axle offer 47% increase in max torque capacity over Neo hubs
✓ Connection program includes 3-year E-sync hub warranty, 3-year S2 rim warranty, 1-year crash replacement, and $10 donation to trail maintenance or advocacy group of your choice
✓ Tubeless tape installed, requires additional valve stems
✓ 32 Spokes

Rear Axle	12mm Thru x 142mm
Rim Width (Internal)	28
Cassette Body Type	SRAM XDR
Valve	Presta
Color	Black
Wheel Size	29"
Designed for ebike	Yes
Defined Color	Black
ISO Diameter	622 / Road / 29"
Tire Type	Tubeless Ready
Rim Material	Alloy
Hub/Brake Compatibility	6-Bolt Disc
