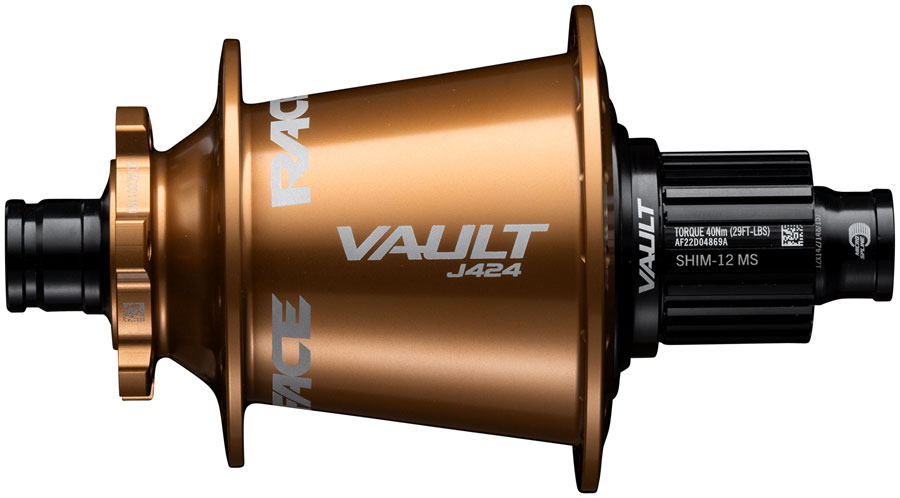

RaceFace Vault J-Bend 424 Rear Hub - 12 x 148mm, 6-Bolt, Micro Spline, Kashmoney Gold, 32H

MPN: 945-00-002 · UPC: 821973495804

$398.99

Low Stock — 2 left

💳 Pay as low as $399/mo with Affirm. Prequalify now

Select Option: — Choose —

🏪 Free pickup: 26 Essex St (Rear), Andover MA · 978-270-4895

🔒 Secure Checkout

💳 Visa · MC · Amex · Apple Pay

📦 Free Ship $99+

🚚 Local Delivery $20

Vault series hubs represent a top-tier platform, engineered for riders who want quick engagement, exceptional stiffness, and long‑term durability across aggressive trail, enduro, and gravity riding. Built around a standout oversized hub shell and a high‑engagement drive system, the Vault hubs are designed to transfer rider power efficiently while withstanding heavy loads and harsh terrain.

✓ Oversized hub shell for increased torsional and lateral stiffness
✓ Proven 6902 cartridge bearings were selected due to their large ball diameter and durability
✓ 60 tooth drive ring alternately engages six double tooth pawls, giving you 3degree engagement for near-instant power transfer
✓ Wide bearing placement was designed to decrease load on the bearings, improving lifespan
✓ Low-drag labyrinth seals designed specifically for the Vault hubs to protect internals
✓ Swap endcaps without tools for hassle-free changes

Flange Diameter, Left	61.5
Rear Axle	12mm Thru x 148mm
Flange Diameter, Right	71.5
Cassette Body Type	Shimano Micro Spline
Center to Flange, Left	36.5
Center to Flange, Right	23
Color	Kashmoney
Skewer Included	No
Bearing Type	Sealed Cartridge
Designed for ebike	Yes
Defined Color	Gold
Spoke Interface	J-Bend
Hub Drilling	32
Hub/Brake Compatibility	6-Bolt Disc
