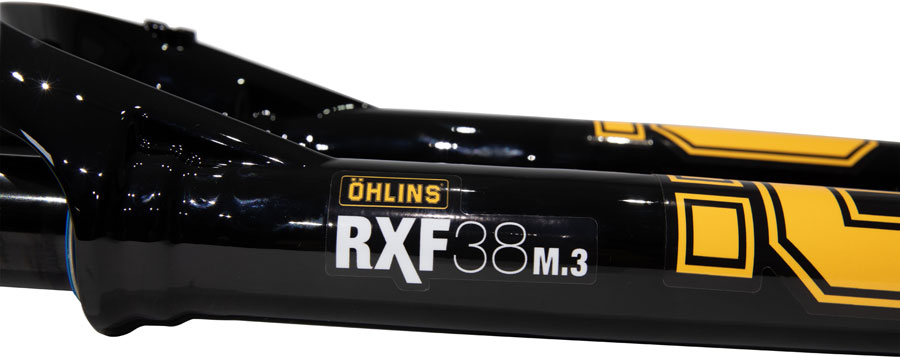

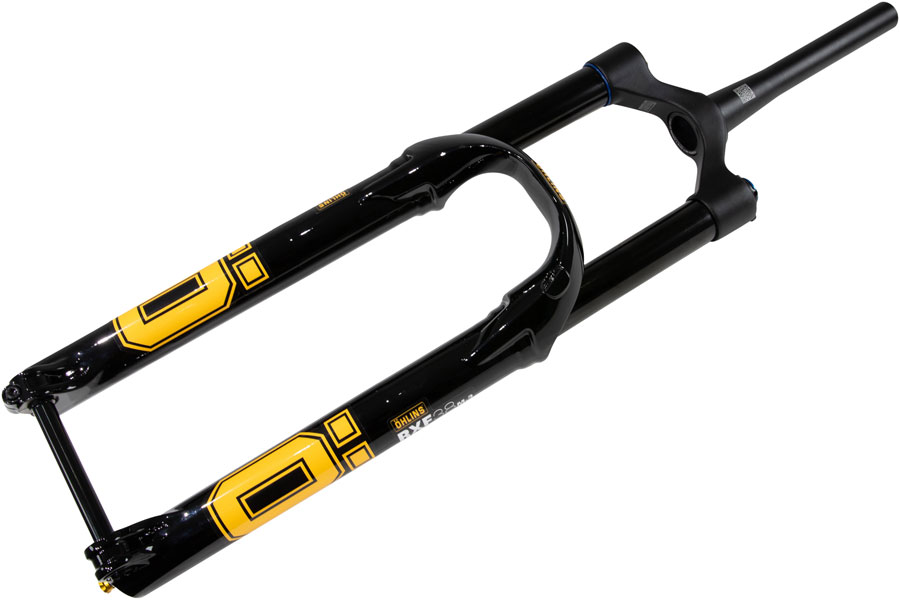

Ohlins RXF38 m.3 Suspension Fork - 29", 160mm, 15mm x 110mm, 44mm Offset, TTX18 Damper, Dual Adjust Air Spring, Gloss Black
MPN: FGMTB 3816 2510 · UPC: 840153644368
The new RXF38 m.3 features reworked internals and updated settings, built around the race-proven TTX18 damper cartridge. This stiff fork is the perfect match for e-MTBs, aggressive trail riding and enduro racing, delivering significant performance upgrades on every ride. The new RXF38 m.3 fork delivers hard-hitting, dual-crown downhill performance in a single-crown design, with improvements in comfort, sensitivity, and bottom-out control. Bottom-out progressiveness has been increased with the addition of a spring booster, and the system is further optimized for use with volume spacers, giving riders greater flexibility to fine-tune their ride feel. With these upgrades, the new RXF38 m.3 fork is the most advanced trail fork Ohlins has ever created and your top choice when the trails get steeper, the rock gardens rougher, and the gaps bigger.

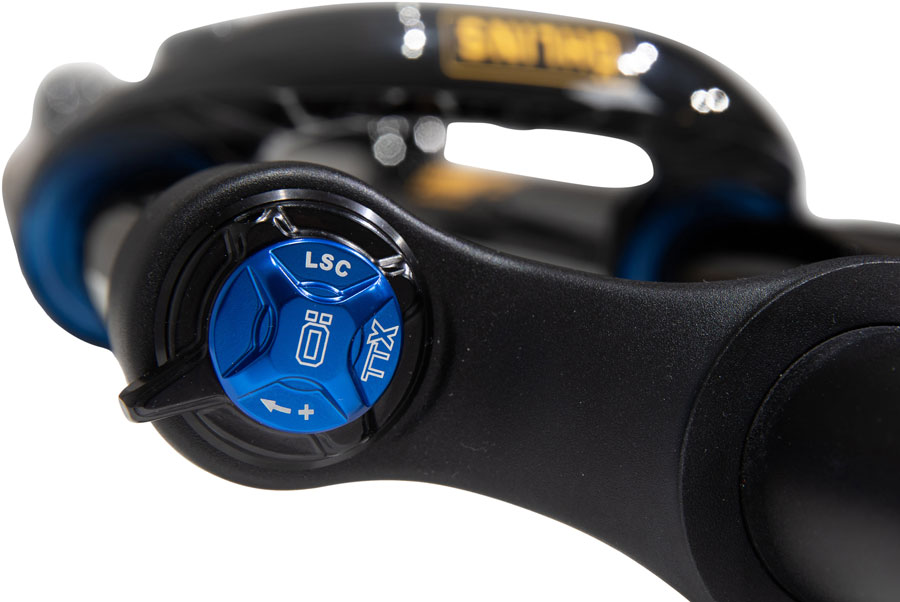

- ✓ The RXF38 m.3’s adjustment range provides 16 clicks of low-speed compression, 3 clicks of high-speed compression, and 16 clicks of rebound adjustment

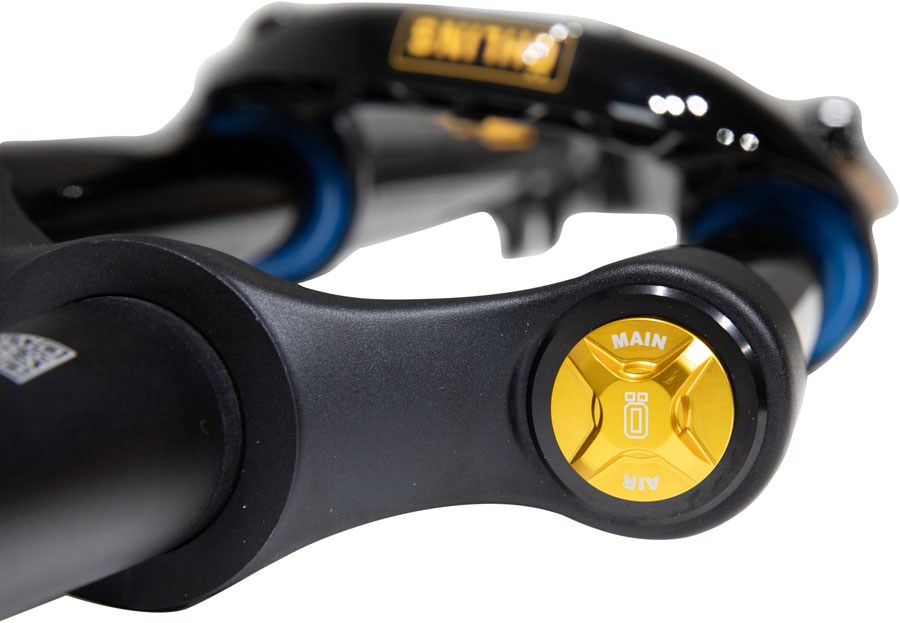

- ✓ Cartridge-based air spring allows for quick swaps between air and coil setups when needed (coil cartridge sold separately)
- ✓ Features Ohlins floating axle design to minimize friction and weighs 2,320 g (with bolts and axle)
- ✓ For 29” wheel sized frames
- ✓ New surface treatment on the 38mm stanchions improves small-bump sensitivity and overall ride smoothness in the new RXF38 m.3
- ✓ Updated lowers feature a gloss black finish and bold new graphics, ensuring riders can both feel and see the next level of performance every time they hit the trail or park

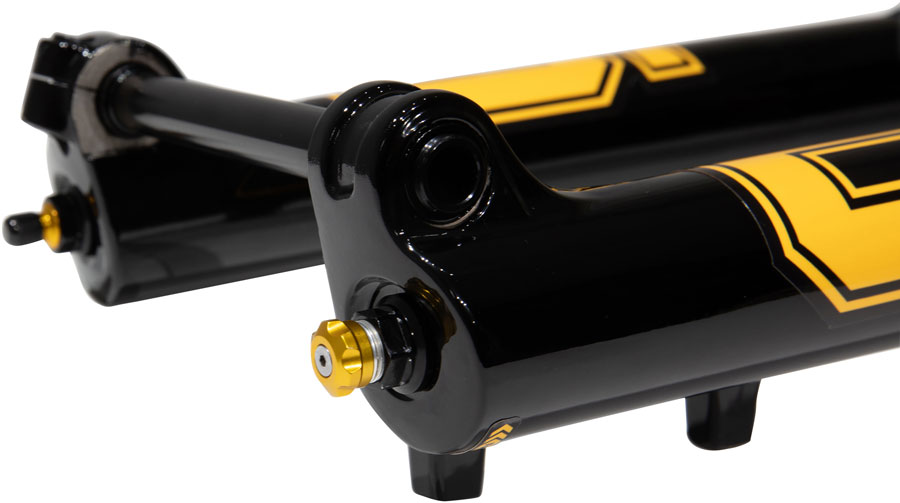

- ✓ 15mm x 110mm boost floating thru-axle axle design to minimize friction
- ✓ eMTB approved
| Steerer Type | Tapered |
| Lockout Switch | Crown |
| Brake Type | Post Mount 200 |
| Negative Spring | Air |
| Travel (mm) | 160 |
| Offset | 44 |
| Axle to Crown Length | 573 |
| Front Axle | 15mm Thru x 110mm |
| Maximum Tire Width | 66 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Color | Gloss Black |
| Crown Race | 40 |
| Weight | 2320 |
| Wheel Size | 29" |
| External Adjustments | Rebound Damping |
| Defined Color | Black |
| Positive Spring | Air |
| keyword search | Suggested Order |
| Stanchion Diameter | 38 |
