Ohlins RXC34 m.1 Suspension Fork - 29", 120mm, 15mm x 110mm, 44mm Offset, Remote Actuated OTX14 Damper, Carbon Unicrown, Air Spring, Black

MPN: FGMTB 3412 2390 · UPC: 840153633607

$1550.00

Low Stock — 3 left

💳 Pay as low as $1550/mo with Affirm. Prequalify now

Select Option: — Choose —

🏪 Free pickup: 26 Essex St (Rear), Andover MA · 978-270-4895

🔒 Secure Checkout

💳 Visa · MC · Amex · Apple Pay

📦 Free Ship $99+

🚚 Local Delivery $20

Unleash the next level of racing performance with the latest innovation in Ohlins front suspension – the RXC34 m.1 carbon unicrown fork. Equipped with their race proven floating axle design, the RXC34 m.1 features a chassis with a stiff, yet lightweight aluminum with carbon unicrown construction for precise steering and predictable performance. This is their lightest racing version of the carbon unicrown fork, saving an additional 20 g of weight. Like the aluminum version, the carbon unicrown RXC34 m.1 features an all-new damper and updated air spring, further enhancing speed and control on technical cross-country tracks. As part of the Öhlins XC suspension system, the RXC34 m.1 features a rider-friendly system for adjusting air spring progressiveness and stroke. And with their race-proven setting bank, you’ll be able to fine-tune the fork to your unique riding style and bike linkage.

✓ This RXC34 m.1 remote version (remote sold separately) offers 3 ride modes and 16 clicks of rebound adjustment
✓ Remote connection is designed for 7.5 mm of wire pull per position which means you can use the shock with remote levers from other top brands

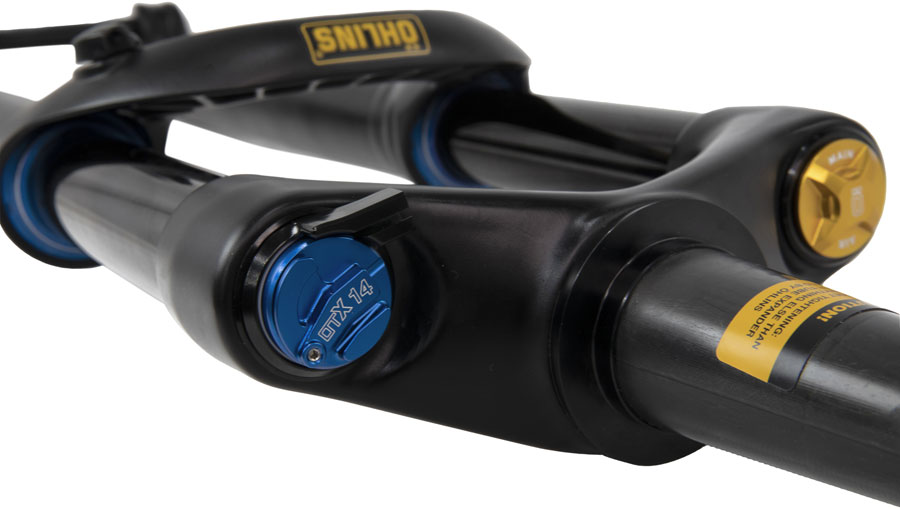

✓ Uses the new XC-optimized OTX14 damper that's been extensively designed to provide a slim, lightweight damper packed with technology
✓ Highly adjustable with race-proven setting bank to match riding style and bike

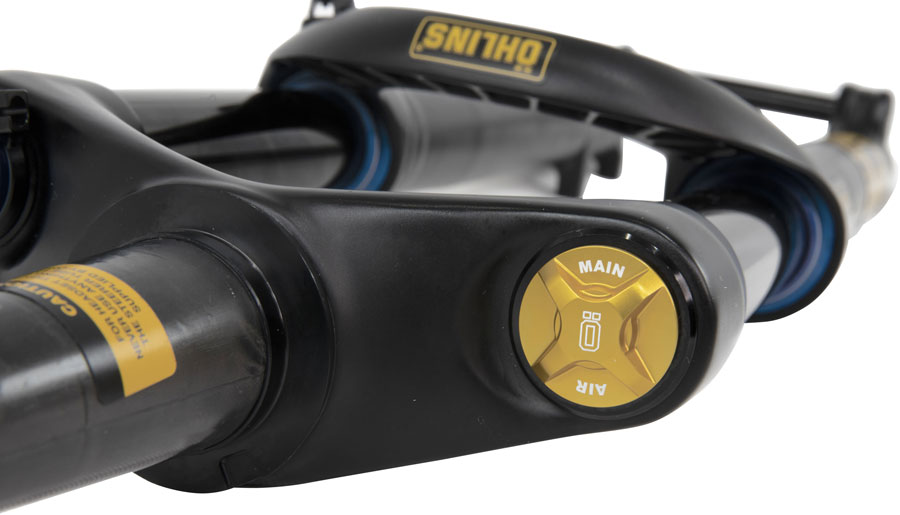

✓ Two-chamber air spring feature a large negative air chamber balanced with the damper’s characteristics in the three different ride modes – open, pedal, and lockout
✓ Creates the initial movement required for superior traction while retaining best-in-class, predictable support when pushing hard

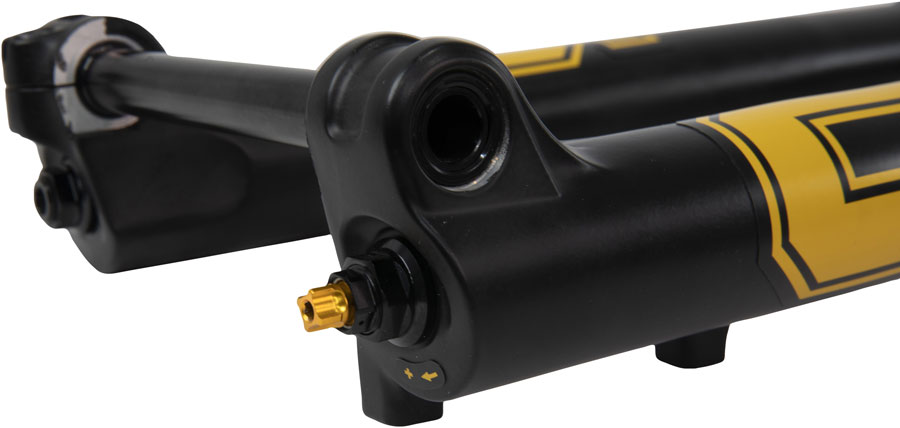

✓ 15mm x 110mm boost floating thru-axle axle design to minimize friction

Steerer Type	Tapered
Lockout Switch	Remote
Brake Type	Post Mount 180
Negative Spring	Air
Travel (mm)	120
Offset	44
Axle to Crown Length	531
Front Axle	15mm Thru x 110mm
Maximum Tire Width	66
S.H.I.S. Stem Clamp Diameter	28.6
Color	Black
Crown Race	40
Weight	1496
Wheel Size	29"
External Adjustments	Rebound Damping
Defined Color	Black
Positive Spring	Air
Stanchion Diameter	34
