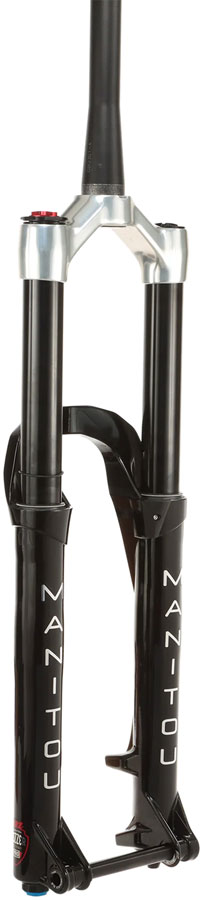

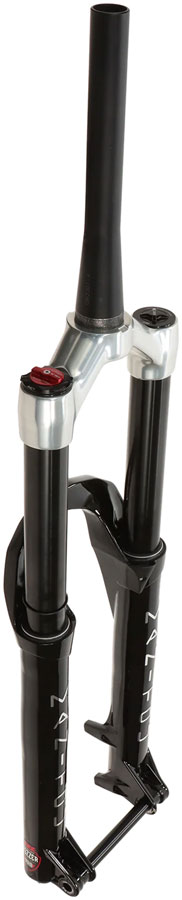

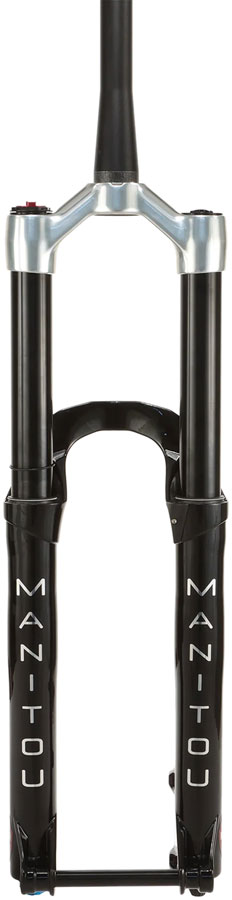

Manitou Mezzer Pro G2 Suspension Fork - 29", 170mm, 15 x 110mm Hexlock SL2, 44mm Offset, Gloss Black
MPN: 191-40142-A002 · UPC: 844171018231
The Mezzer Pro G2 sits at the pinnacle of lightweight long-travel suspension performance. Built for aggressive trail and enduro riders chasing maximum speed with minimum weight, the Mezzer Pro G2 blends exceptional chassis stiffness, unmatched tunability, and benchmark suspension sensitivity into one race-ready platform. Built around Manitou’s 37mm chassis and signature Reverse Arch design, the Mezzer Pro achieves the stiffness of a 38mm fork while remaining among the lightest in its class. Optimized around the most commonly ridden travel ranges, the revised chassis reduces breakaway friction and improves bushing overlap for smoother, more controlled suspension performance across every part of the stroke. With advanced damping controls, independent rebound adjustments, and the latest MC2-Pro-X damper, the Mezzer Pro G2 delivers uncompromising traction, support, and confidence for riders pushing the limits of modern enduro riding.
- ✓ New air spring offers improved bump compliance and travel usage for a wider range of riders and conditions

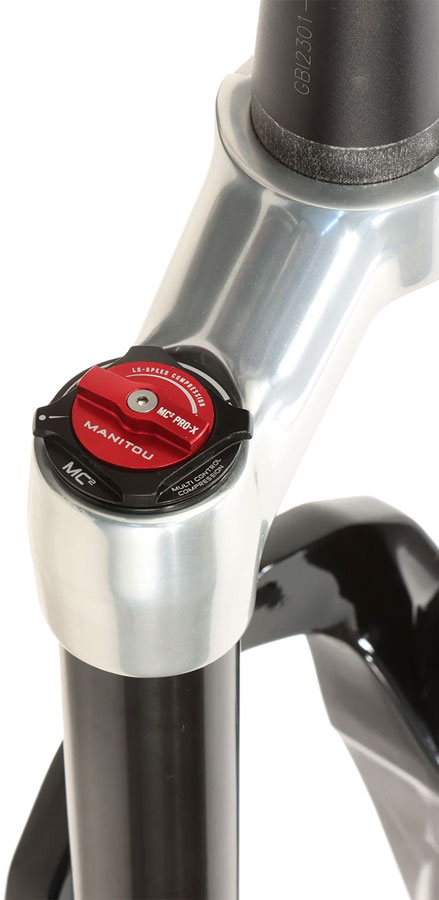

- ✓ 4-way adjustable MC² PRO-X damper with HBO Sealed Cartridge provides improved support with less rider feedback to allow for maximum adjustability and fine tuning of both compression and rebound
- ✓ Air backed bladder for the lowest break-away force with maximum consistency during demanding riding conditions.
- ✓ The updated chassis features crown machining to reduce weight, casting updates with new bushing bore machining process, drop out machining (MBA red ring) and arch ribbing with improved casting stiffness to optimize bushing alignment, results in reduced binding and creates a smoother fork throughout the travel
- ✓ Updated casting volume and bottom out system allows full travel to be used more easily when needed with less overlap between bottom out bumper, HBO and end of stroke support from air spring
- ✓ Lower legs are crafted using premium 7000-series butted wall aluminum for weight savings and exceptional stre
| Steerer Type | Tapered |
| Lockout Switch | Crown |
| Brake Type | Post Mount 180 |
| Negative Spring | Air |
| Travel (mm) | 170 |
| Offset | 44 |
| Axle to Crown Length | 581 |
| Front Axle | 15mm Thru x 110mm |
| Maximum Tire Width | 69 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Color | Gloss Black |
| Crown Race | 40 |
| Weight | 2030 |
| Wheel Size | 29" |
| External Adjustments | Rebound Damping |
| Defined Color | Black |
| Positive Spring | Air |
| Stanchion Diameter | 37 |
| Steerer Tube Length (mm) | 248 |
