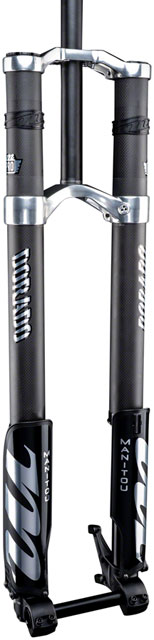

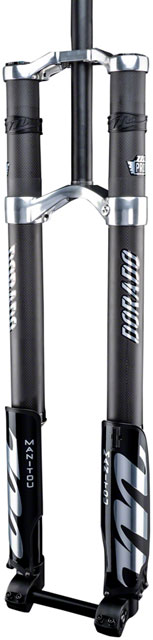

Manitou Dorado Pro Suspension Fork - 29", 203 mm, 20 x 110 mm, 57 mm Offset, Black/Carbon, Straight Steerer

MPN: 191-37419-A201 · UPC: 847863026620

$1949.99

Out of Stock — Call for Availability

💳 Pay as low as $1950/mo with Affirm. Prequalify now

Select Option: — Choose —

🏪 Free pickup: 26 Essex St (Rear), Andover MA · 978-270-4895

🔒 Secure Checkout

💳 Visa · MC · Amex · Apple Pay

📦 Free Ship $99+

🚚 Local Delivery $20

Back in a big way, the all-new Dorado Pro is ready to turn the suspension world upside down. Featuring an inverted design, carbon upper structure, 37mm stanchions, and refreshed internals the new Dorado Pro is the pinnacle of suspension technology. The new stiﬀer chassis is paired with an all-new sealed version of Manitou’s TPC+ damper and improved Dorado Air Spring with IRT volume adjuster. These technologies combined into one ultimate platform provides more than enough tunability to satisfy any savvy suspension tuner while being so easy to adjust that every rider can dial in their fork with ease.

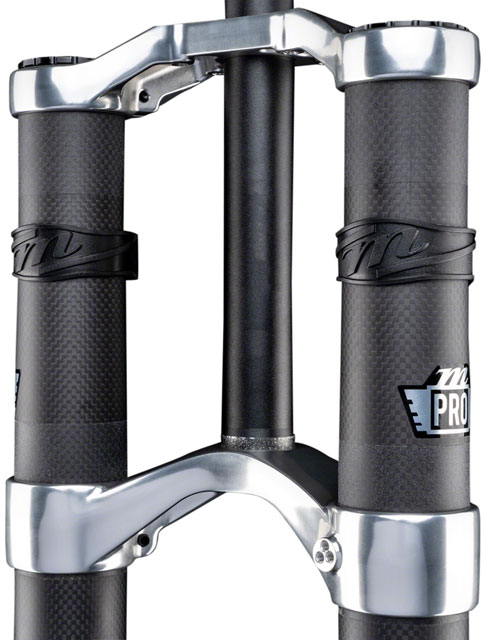

✓ Carbon Outer legs with 37mm 6000 Series Aluminum stanchions
✓ Aluminum upper and lower crown, and steerer
✓ TPC+ with HBO damper system features separate systems that govern hydraulic bottom out, high speed and low speed compression damping, and an energy dependent damping circuit that responds to the overall oil displacement for a bottomless feel
✓ TSR Bleeders, Hydraulic and rubber bumper bottom out protection
✓ Removable bolt on fender
✓ 180, 190, 203mm internally adjustable travel

Steerer Type	Straight
Color	Black/Carbon
Lockout Switch	None
Brake Type	Post Mount 203
Crown Race	30
Negative Spring	Air
Travel (mm)	203
Wheel Size	29"
Offset	57
External Adjustments	High Speed Compression Damping
Defined Color	Black
Positive Spring	Air
Axle to Crown Length	602
Front Axle	20mm Thru x 110mm
Stanchion Diameter	37
Maximum Tire Width	67
S.H.I.S. Stem Clamp Diameter	28.6
Steerer Tube Length (mm)	251
