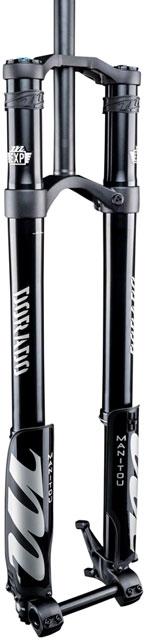

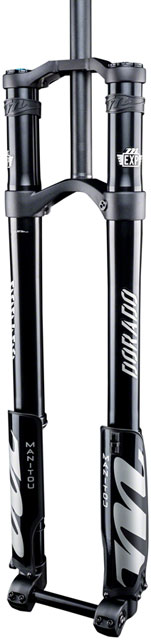

Manitou Dorado Expert Suspension Fork - 27.5", 203 mm, 20 x 110 mm, 47 mm Offset, Black, Straight Steerer

MPN: 191-38304-A101 · UPC: 847863026590

$1549.99

Out of Stock — Call for Availability

💳 Pay as low as $1550/mo with Affirm. Prequalify now

Select Option: — Choose —

🏪 Free pickup: 26 Essex St (Rear), Andover MA · 978-270-4895

🔒 Secure Checkout

💳 Visa · MC · Amex · Apple Pay

📦 Free Ship $99+

🚚 Local Delivery $20

Back and better than ever, the new Dorado Expert is ready to take on the gnarliest conditions mountain biking can provide. Whether you’re looking to cut seconds oﬀ the splits, lap the local park, or get sendy in the back hills of Utah the Dorado Expert has you covered. Featuring an all new 37mm chassis, completely redesigned internals, and on-trail precision that only inverted forks can provide, the new Dorado is your ticket to the best ride you’ve ever had.

✓ 37mm 6000 Series Aluminum stanchions with 6000 Series Aluminum upper tubes
✓ Aluminum upper and lower crown, and steerer
✓ TPC+ with HBO damper system features separate systems that govern hydraulic bottom out, high speed and low speed compression damping, and an energy dependent damping circuit that responds to the overall oil displacement for a bottomless feel
✓ TSR Bleeders, Hydraulic and rubber bumper bottom out protection
✓ Removable bolt on fender
✓ 180, 190, 203mm internally adjustable travel

Steerer Type	Straight
Color	Black
Lockout Switch	None
Brake Type	Post Mount 203
Crown Race	30
Negative Spring	Air
Travel (mm)	203
Wheel Size	27.5"
Offset	47
External Adjustments	High Speed Compression Damping
Defined Color	Black
Positive Spring	Air
Axle to Crown Length	582
Front Axle	20mm Thru x 110mm
Stanchion Diameter	37
Maximum Tire Width	67
S.H.I.S. Stem Clamp Diameter	28.6
Steerer Tube Length (mm)	251
