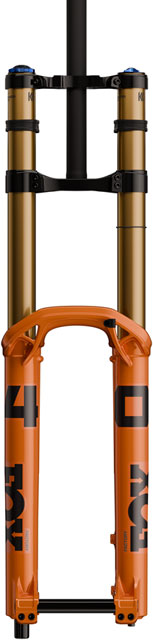

FOX 40 Factory Suspension Fork - 29", 203 mm, 20TA x 110 mm, 52mm Offset, GRIP X2 MY27 , Shiny Orange

MPN: 910-21-409 · UPC: 821973524733

$1999.00

Out of Stock — Call for Availability

💳 Pay as low as $1999/mo with Affirm. Prequalify now

Select Option: — Choose —

🏪 Free pickup: 26 Essex St (Rear), Andover MA · 978-270-4895

🔒 Secure Checkout

💳 Visa · MC · Amex · Apple Pay

📦 Free Ship $99+

🚚 Local Delivery $20

Target locked on the top step of the podium and developed in the crucible of World Cup competition, the 40 is the definitive DH race fork. FOX's GRIP X2 is the most tunable, supportive and smoothest descent-focused damper they've created, ensuring the 40 stays planted in the hot seat.

✓ GRIP X2, with all new piston and tune, is the most tunable, supportive and smoothest descent-focused damper designed to win World Cups
✓ Riders reap the benefits of sitting higher in the travel while tires stay glued to the ground, cornering with increased traction and experience reduced fatigue
✓ The generative designed arch maintains the 40’s steering responsiveness, while relocated bypass channels on the lowers contribute to even more smoothness and sensitivity at high speed
✓ The seamlessly compliant FLOAT Glidecore air spring reduces friction and bind by moving with the fork under dynamic load
✓ Floating thru axle allows perfect chassis alignment and reduces unwanted friction between the upper and lower fork legs, providing much smoother suspension movement throughout the entire range of travel
✓ Smoother suspension and reduced breakaway friction mean less fatigue in your hands and arms, so you can stay target locked on the podium
✓ Kashima Coating on upper tubes for added durability

Steerer Type	Straight
Lockout Switch	Crown
Brake Type	Post Mount 200
Negative Spring	Air
Travel (mm)	203
Offset	52
Axle to Crown Length	601.9
Front Axle	20mm Thru x 110mm Boost
Maximum Tire Width	63
S.H.I.S. Stem Clamp Diameter	28.6
Color	Shiny Orange
Crown Race	30
Wheel Size	29"
External Adjustments	Rebound Damping
Defined Color	Orange
Positive Spring	Air
keyword search	FOX MY27
Stanchion Diameter	40
Steerer Tube Length (mm)	272
