FOX

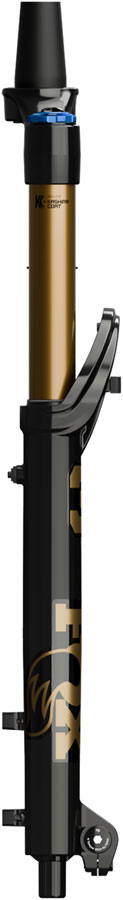

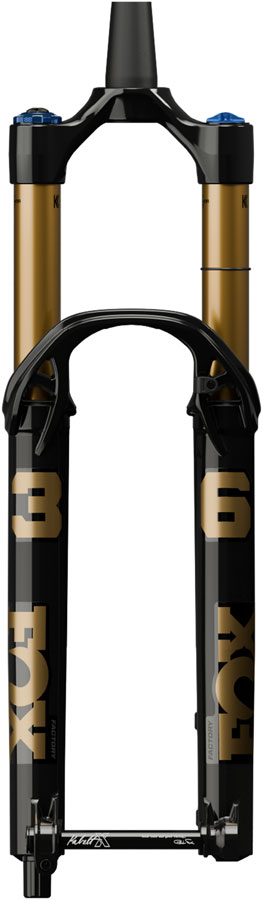

FOX 36 Factory Suspension Fork - 29", 160 mm, 15 x 110 mm, Kabolt-X, 44mm Offset, GRIP X2 MY27, Float Glidecore, 58HT, Shiny Black
MPN: 910-21-432 · UPC: 821973525266
$1299.00
Low Stock — 5 left (Warehouse)
📦 Ships from Warehouse — 4-9 Business Days
💳
Select Option: FOX 36 Factory Suspension Fork - 29", 160 mm, 15 x 110 mm, Kabolt-X, 44mm Offset, GRIP X2 MY27, Float Glidecore, 58HT, Shiny Black
🏪 Free pickup: 26 Essex St (Rear), Andover MA · 978-270-4895
🔒 Secure Checkout
💳 Visa · MC · Amex · Apple Pay
📦 Free Ship $99+
🚚 Local Delivery $20
Packed with features to dominate the descents, the 36 answers the call from aggressive all-mountain riders. Available in both trail-focused GRIP X and gravity-focused GRIP X2 damper options.

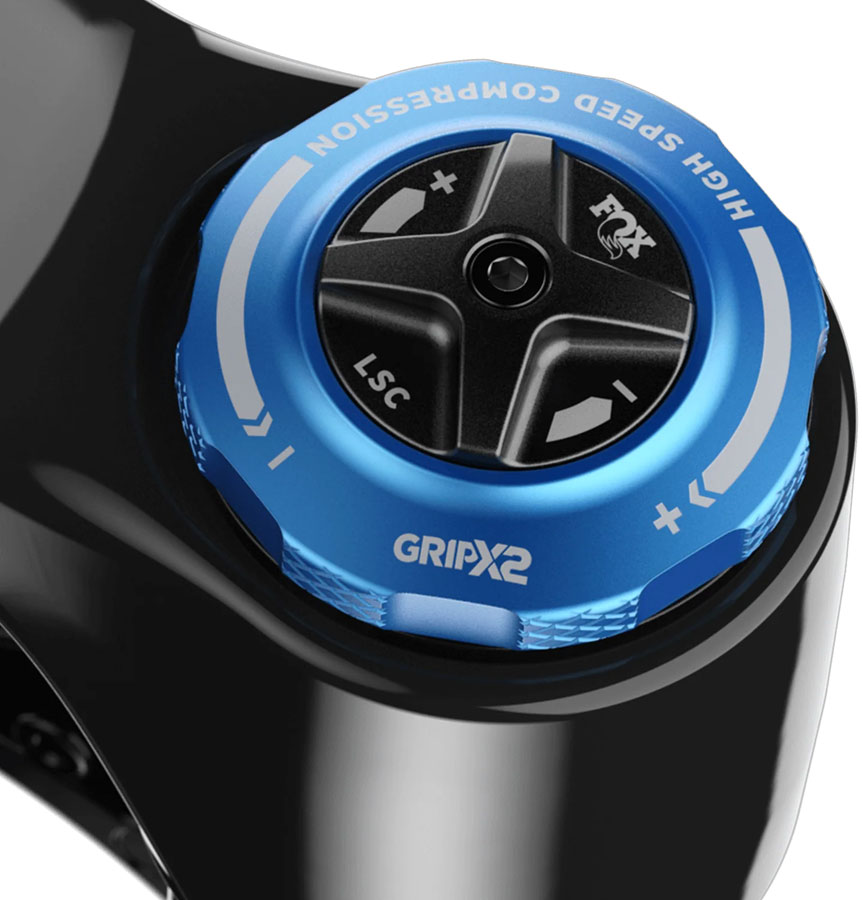

- ✓ 4-way adjustable GRIP X2, with all new piston and tune, is the most tunable, supportive and smoothest descent-focused damper ever created by FOX
- ✓ Generative design-assisted lower leg arch shape increases torsional stiffness by 20%, while reducing overall material
- ✓ Additional 30mm bushing overlap than the prior model 36, reduces chassis friction, increasing stiffness and boosting performance
- ✓ The seamlessly compliant FLOAT Glidecore air spring reduces friction and bind by moving with the fork under dynamic load for a smoother suspension action
- ✓ Lower leg bypass channels were relocated 90° inboard to a lower stress area, reducing dynamic friction under bending forces
- ✓ Double-butted stanchion (on damper side) shaves weight, helping us achieve goal of zero weight increase
- ✓ Redesigned bleeders are sleeker and easier to operate
- ✓ Kabolt-X axle shaves grams while increasing torsional stiffness via a sleeveless, single-sided pinch bolt design
- ✓ Kashima Coating on upper tubes for added smoothness and durability
| Steerer Type | Tapered |
| Lockout Switch | Crown |
| Brake Type | Post Mount 200 |
| Negative Spring | Air |
| Travel (mm) | 160 |
| Offset | 44 |
| Axle to Crown Length | 576 |
| Front Axle | 15mm Thru x 110mm |
| Maximum Tire Width | 66 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Color | Shiny Black |
| Crown Race | 40 |
| Wheel Size | 29" |
| External Adjustments | Rebound Damping |
| Defined Color | Black |
| Positive Spring | Air |
| keyword search | FOX Model Year 27 , FOX MY27 |
| Stanchion Diameter | 36 |
