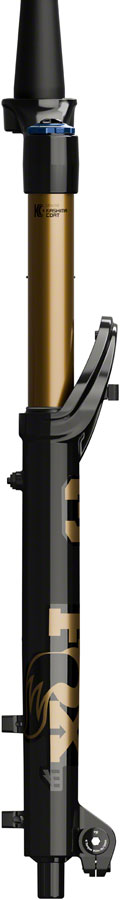

FOX 36 E-Optimized Factory Suspension Fork - 29", 160 mm, 15 x 110 mm, Kabolt-X, 44mm Offset, GRIP X2 Damper, 58HT, No ABS, Shiny Black

MPN: 910-21-347 · UPC: 821973504070

$1070.15

In Stock — Ready to Ship

💳 Pay as low as $1070/mo with Affirm. Prequalify now

Select Option: — Choose —

🏪 Free pickup: 26 Essex St (Rear), Andover MA · 978-270-4895

🔒 Secure Checkout

💳 Visa · MC · Amex · Apple Pay

📦 Free Ship $99+

🚚 Local Delivery $20

The award winning 36 continues its all-mountain domination with a reinforced chassis to handle the increased loads of eMTB and World Cup EDR-E racing. Available in both trail-focused GRIP X and gravity-focused GRIP X2 damper options.

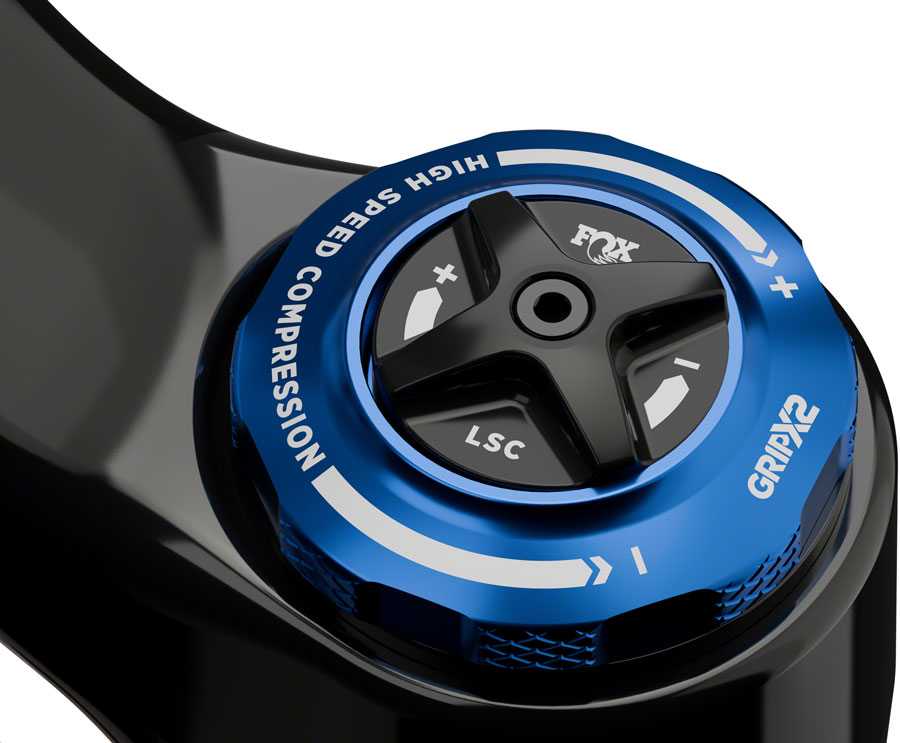

✓ GRIP X2 is the most tunable, supportive and smoothest descent-focused damper FOX has created so riders reap the benefits of sitting higher in the travel while tires stay glued to the ground, cornering with increased traction and experience reduced fatigue
✓ Generative design-assisted lower leg arch shape increases torsional stiffness by 20%, while reducing overall material
✓ Additional 30mm bushing overlap than the prior model 36, reduces chassis friction, increasing stiffness and boosting performance
✓ New compliant FLOAT EVOL air spring design allows for a slight misalignment under load, reducing chassis friction noticeably
✓ Lower leg bypass channels were relocated 90° inboard to a lower stress area, reducing dynamic friction under bending forces
✓ Double-butted stanchion (on damper side) shaves weight, helping us achieve goal of zero weight increase
✓ New air spring top cap for easier air volume adjustments, removable with cassette tool (Sold separately)
✓ Redesigned bleeders are sleeker and easier to operate
✓ Kabolt X axle shaves grams while increasing torsional stiffness via a sleeveless, single-sided pinch bolt design
✓ Kashima Coating on upper tubes for added smoothness and durability

Steerer Type	Tapered
Lockout Switch	Crown
Brake Type	Post Mount 200
Negative Spring	Air
Travel (mm)	160
Offset	44
Axle to Crown Length	576
Front Axle	15mm Thru x 110mm
Maximum Tire Width	66
S.H.I.S. Stem Clamp Diameter	28.6
Color	Shiny Black
Crown Race	40
Wheel Size	29"
Designed for ebike	Yes
External Adjustments	Rebound Damping
Defined Color	Black
Positive Spring	Air
keyword search	FOX Model Year 26 , FOX MY26
Stanchion Diameter	36
Steerer Tube Length (mm)	264
