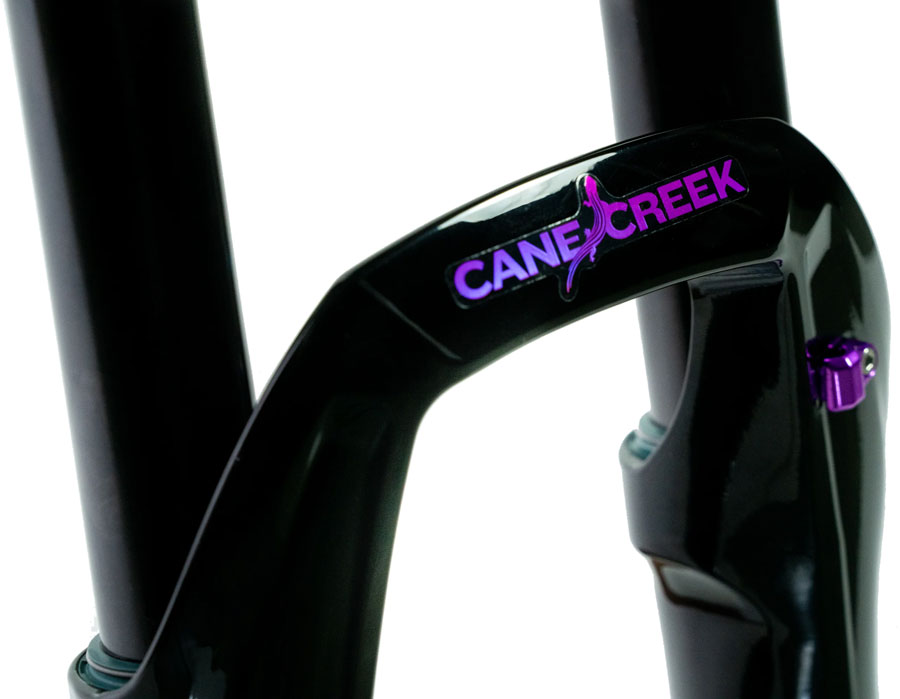

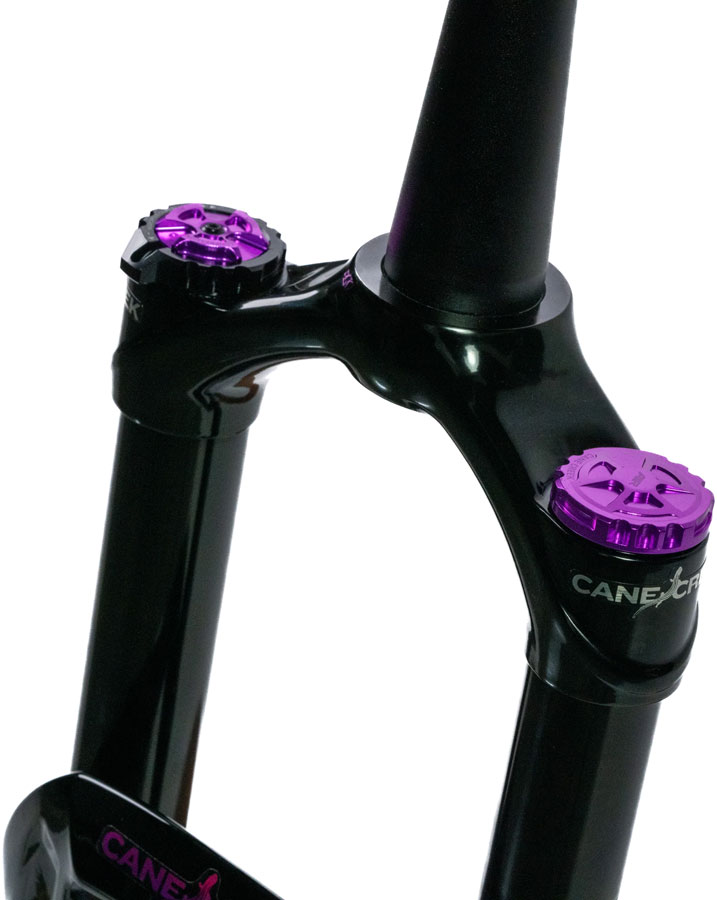

Cane Creek Helm MKII Air 29 Suspension Fork - 29", 160 mm, 15 x 110 mm, 44 mm Offset, Gloss Black/Purple

MPN: BAG0685PP · UPC: 840226035147

$1099.99

Out of Stock — Call for Availability

💳 Pay as low as $1100/mo with Affirm. Prequalify now

Select Option: — Choose —

🏪 Free pickup: 26 Essex St (Rear), Andover MA · 978-270-4895

🔒 Secure Checkout

💳 Visa · MC · Amex · Apple Pay

📦 Free Ship $99+

🚚 Local Delivery $20

The Cane Creek Helm MKII Air Suspension Fork features an upgraded damper design for increased support and control and a redesigned air spring that allows for increased air volume for better traction and suppleness.

✓ Compression and midvalve circuit offer increased support and control
✓ SKF oil seal head cartridge and wiper seals are low friction
✓ The redesigned air spring offers increased air volume for better traction and suppleness
✓ The threadless air seal head allows for easier travel change

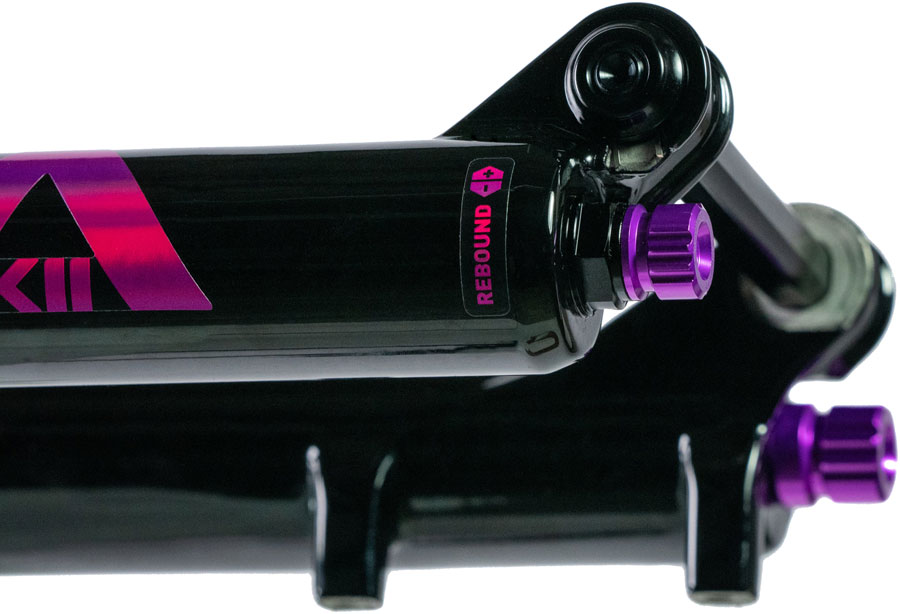

✓ Damping features include: high speed compression, low speed compression, and low speed rebound
✓ Adjustment options include: high speed compression (10 positions), low speed compression (17 positions), Low speed rebound (10 positions), independent positive air spring, independent negative air spring, and an indexed travel system (8 positions)
✓ Double-Air spring system: high volume positive and negative air springs
✓ "D-Loc" 15mm bolt-on thru axle

Steerer Type	Tapered
Brake Type	Post Mount 180
Negative Spring	Air
Travel (mm)	160
Offset	44
Axle to Crown Length	573
Front Axle	15mm Thru x 110mm
Maximum Tire Width	65
S.H.I.S. Stem Clamp Diameter	28.6
Color	Black/Purple
Crown Race	40
Weight	2080
Wheel Size	29"
External Adjustments	Rebound Damping
Defined Color	Black
Positive Spring	Air
Stanchion Diameter	35
Steerer Tube Length (mm)	265
